“OPEK”Brand jacquard cap and scarf knitting machine which
is OPEK self-developed with Germany technology .
“OPEK”machine due to stable performance and in time aftersales service, high quality parts.
Already enjoys a good reputation both at home and abroad market.Such as United States,
Canada, Mexico, France, Ecuador, Peru, India, Vietnam, Uzbekistan, Russia, Belarus, etc.
“OPEK”cap and scarf knitting machine can fast and High precision making various hats and
scarves with Complex pattern and colors .the customers can according to requirements or
features, making and choose the design very easy and convenient .

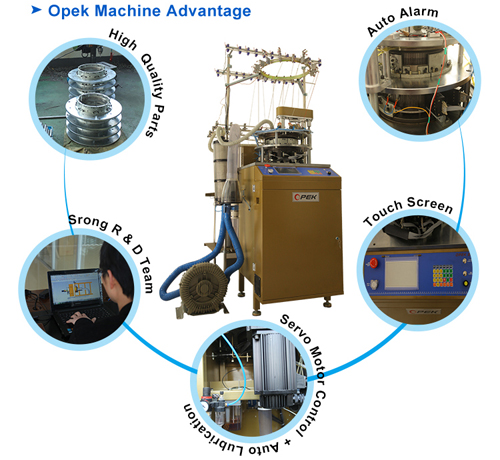

“OPEK”Machine using the latest triangle design, high quality machine parts and the latest
designs soft. the programs can rapidly and accurately is loaded into the computer, the
operation is very simple.This machine is called hat and scarf industry necessary production
Your Success , Our Mission !
MODEL : OPEK202A
Computerized Jacquard Hats and Scarf Knitting machine
1. Cylinder Size : 7’’ 8’’ 9" 10’’
2. Needles : 144N-392N According to customer request
3. R.P.M : 60-120Rpm/Min.
4. Feeder : 8F , Max for 16 colors , Max 8colors jacquard in the same line .
5. Power Consumption : 1KW Servo motor
6. Power Source : 220V/380V ,50/60Hz
7. Full-Automatic Alarm device , Automatic Lubrication , Automatic Counter.
8. 7’’ touch screen in highest technology
9. Full computer control , Easy to operate

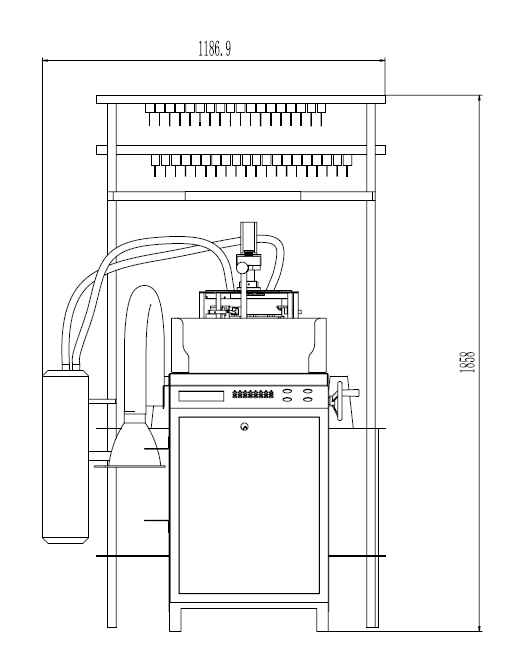

10. Packing size : 930x750x1700mm,Gross Weight.: 305KGS, Net Weight:250KGS
