Rib Knitting Machine

  • Description|
  • Specifications|
  • Machine size|
  • Show details|
  • Fabric swatches
Specification and Characteristic:
OPEK366A, our high-speed rib knitting machine suitable to knit all types of yarn.
The headwear production from our machine has the advantages being seamless.
The machine comes equipped as standard with positive yarn feeding devices, multiple
stop- motions and an automatic oiling system to effectively guarantee a high quality of
knitting.

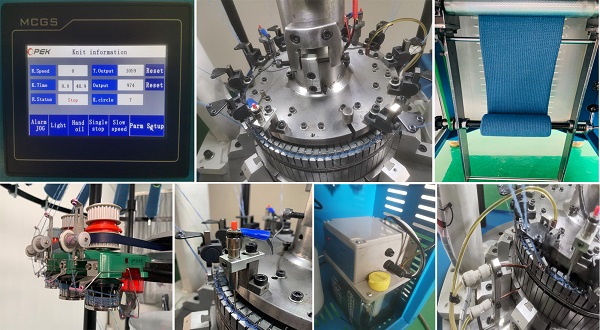

Furthermore, the OPEK366A is equipped with a 4.3- inch color touch screen,
facilitating production changes and allowing the operator to easily read and manipulate
any parameters modifications. The machine frame is sturdily constructed, the takedown
roller system robust and the precision-made cams are of the highest grade steel.
“Creative to win the Future-Details determine your Success”
This belief is anchored in our company, we pursue it with a clear commitment to
performance and a unique work culture allowing us to stay ahead and be a leader.

Cylinder size:4-10inch

Needles number :70-300N(according to customer request)

Maximum speed:60-80RPM

Feeder:2F-10F

Products :1*1rib and tuck

Oiler :auto

Alarm:auto

Main motor:0.75KW

Power:380/220V 50/60HZ


Dimensions:770*650*1040MM

Packing size :820*700*1750MM

NET weight:300KGS

Gross weight:350KGS
